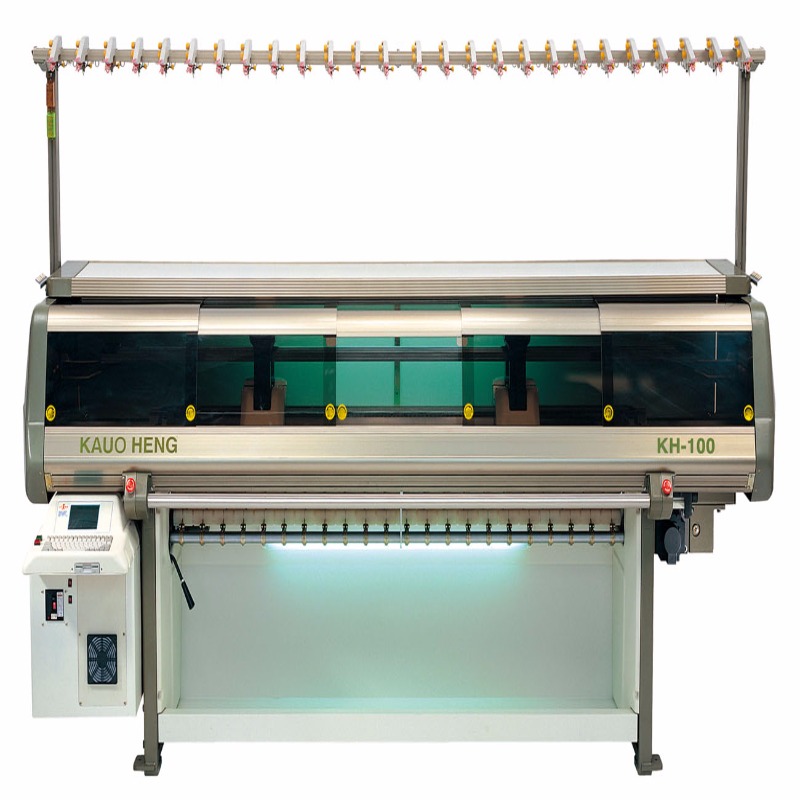

KH-100

MODEL

KH-100

GAUGE

7G, 10G, 12G, 14G, 16G,18G

KNITTING WIDTH

40” (102cm)

CAM  SYSTEM

One carriage, Single system.

KNITTING  SPEED

Max. 1.2m/sec.

Knitting speed varies according to gauge, yarn and knitting condition.

YARN  CARRIERS

6 yarn carriers on 3 rails.

NEEDLE  SELECTION

Full jacquard selection via special solenoids.

NEEDLE  BED

Replaceable segment needle bed.

STITCH  DENSITY

30 levels independent selection, electronic control with stepping motor 00-198 steps.

RACKING

Racked by servo motor and high precision ball screw system.

Racking also available 1/2 pitch from any position.

FABRIC TAKE DOWN

32 levels changeable speed, automatically adjustable on each level.

STOP MOTION

Yarn break, knot, press off, needle break, shock, over torque, piece count, over run, program error etc.

DRIVE

AC servo motor, tooth shape driving belt, no oil needed.

Variable adjustable programmable speed levels.

TOP TENSIONS

Electronic top tensions easy to thread the yarn through.

SAFETY COVER

Full safety cover for anti-noise and dust proofing.

Emergency stop buttons.

OPERATION  LAMP

Green : normal operation.

Yellow : abnormal / manual stop.

FLUORESCENT LAMP

Inside of safety cover.

WOODEN  CASE

2180 x 1120 x 1810 mm. N./G. Weight 450/ 600 KGS.

DATA INPUT

USB flash disk.

OPERATION  &  DISPLAY

LCD display screen, Chinese and English versions available.

PATTERN  MEMORY

1,024 wales x 4,096 courses.

POWER

3 phase AC 220V  50/60HZ.
